12-Point Bolt Kit <br> Bolts, Nuts & Washers <br>Fits: 4.50" OD Conflat <br> Clearance (Thru) Hole <br> (450-BK-12)

450-BK-12
Fits: 4-1/2" OD CF Conflat Flanges With Thru Hole

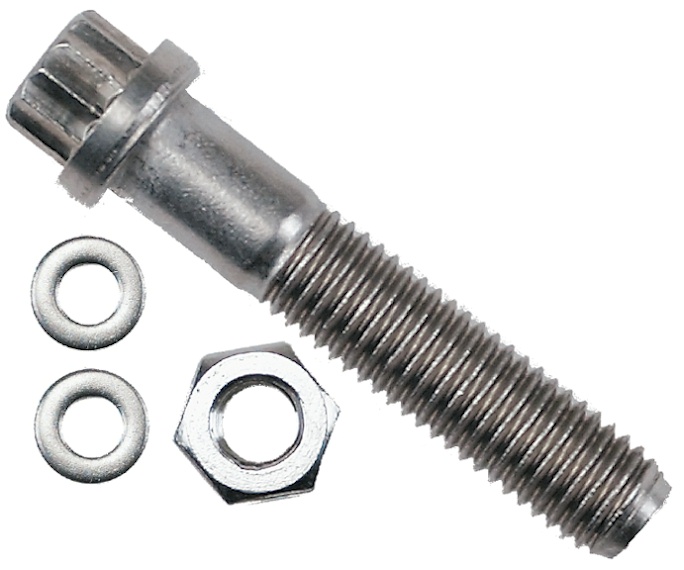

8 Each 12-Point Bolt, Nut & Washer Kit
• Weight: 0.75 lbs
• Del Seal Conflat Flange (CF) Equivalent
• 18-8 Stainless 12 Point Bolts
• DN63CF (4.50") Clearance Hole Bolt Kit
• Ultra-High Vacuum (UHV) Hardware

450-BK12 Series Bolt Kit Fits:
4.50" OD Non-Rotatable Thru Hole CF Flanges
4.50" OD Rotatable Thru Hole CF Flanges

Also Fits All CF Elbows, Tees and Crosses

Maximum Torque for Vacuum Tight Seals

3.38" -16.50" OD

26 ft/lbs.

Over-torqueing can result in broken bolts



4.50" OD Conflat Series Hardware		Anti-Seize Stick



12-Point Wrench		4.50" OD Conflat Series, Copper Gaskets



4.50" OD Conflat Non-Rotatable THRU Hole Series		4.50" OD Conflat Rotatable THRU Hole Series



4.50" OD Conflat Series, Viton� Gaskets
