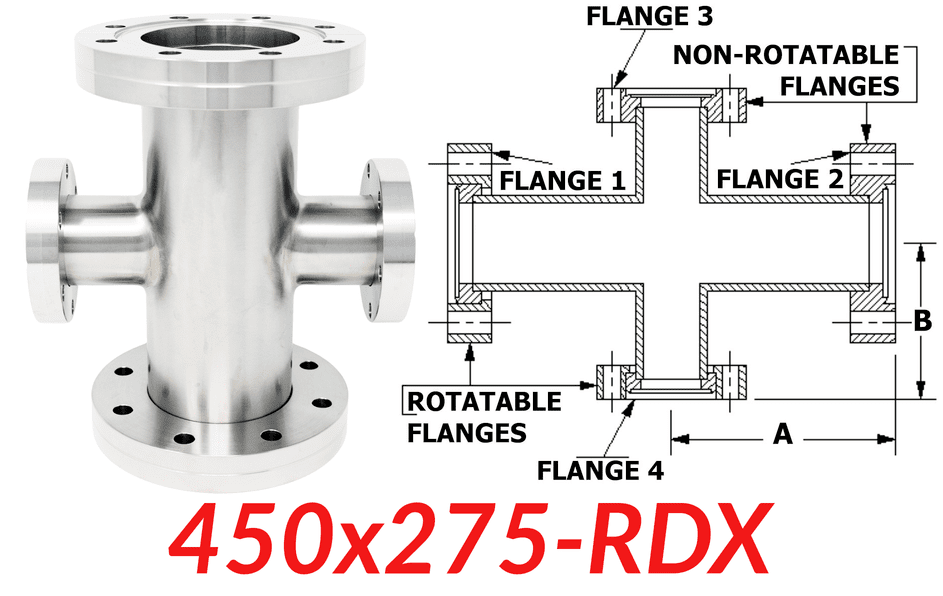

4.50" OD CF to 2.75" OD Conflat <br> Reducing Cross <br> 450x275-RDX

Reducing Cross
4.50" OD Conflat to 2.75" OD Conflat
A: 3.38"
B: 2.96"

450x275-RDX
Conflat Flange 4-Way Reducer Cross
4.50" OD Conflat to 2.75" OD Conflat
• DN35CF, DN40CF to DN63CF UHV Adapter
• 304 Stainless
• OD Polish

2-3/4" OD CF Conflat Flange:
• 1.50" Tube OD
• 6 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter

2.75" OD CF Conflat Flange (CFF) Equivalents
275CF, CF35, CF38, CF40, CF275
DN35CF, DN40CF, NW35CF

4-1/2" OD Conflat Flange (CF):
• 2.50" Tube OD
• 8-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

4.50" OD Conflat Flange (CFF) Equivalents
• 450CF, DN63CF, NW63CF, CF63, CF64 CF450

CF Conflat to CF Conflat Flange
4 Way Adaptive Cross
450x275-RDX Compare to: 4CR-250-150 C-0450-275 5000537 P104791 250-4-150 405041 275x450-X 275x450-RDX 450x275-X



2.75" OD Conflat Series Hardware		4.50" OD Conflat Series Hardware



CF Reducing Crosses		All Conflat Crosses
