D65B TriVac Pump <br> 45.9 CFM

LEY-11296

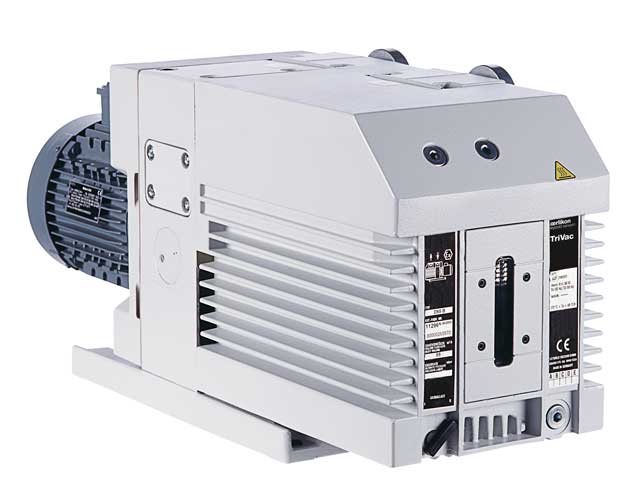

D65B TriVac B Vacuum Mechanical Pump
45.9 CFM - (Actual Pumping Speed)
NEW, Factory Pump
• 3-Phase 230/460 Volt 50/60Hz
• NW40 (KF40) Inlet Exhaust Flange
• BRAND NEW Factory Leybold Vacuum Pump
• Rotary Vane Pump
• 203 lbs.

Sorry, Free Shipping Is NOT Available On This Item
Former PN: LEY-91296-2
91296-2 91296 11296

All NW40 Hardware

Ultimate Partial Pressure:
• With Gas Ballast Closed: <1x10^-4 Torr
• With Gas Ballast Open: <4x10^-3

• Water Vapor Tolerance 30 Torr
• Noise level at 3 feet with gas ballast closed 57 dB(A)
• Noise level at 3 feet with gas ballast open 59 dB(A)
• Motor 3 hp
• Pump Rotational Speed 1750 RPM
• Minimum Oil Capacity 2.1 qt
• Maximum Oil Capacity 3.4 qt
• Inlet Exhaust Flange NW40
• Weight 203 lbs.
