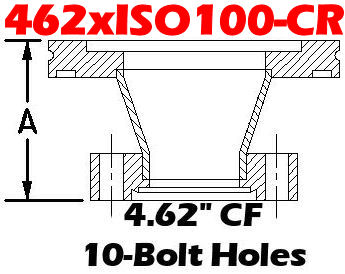

4.62" OD CF to ISO100 <br> Conical Reducer <br> (462xISO100-CR)

462xISO100-CR
ISO100 to 4.62" OD Conflat Flange
Flange to Flange
Conflat to ISO High Vacuum Adapter
Conical Reducing Nipple
• A: 4.15"
• 304 Stainless

ISO100 (ISO-K) Series
• High Vacuum Flange OD: Ø5.12"
• Tube OD: 4.00"
• ISO-K Claw Clamp Style

ISO100 High Vacuum Flange Equivalents:
ISO-100, LF100, NW100, NW-100, Large Flange, MF

4-5/8" OD Conflat Flange (CF):
• 3.00" Tube OD
• 10-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter
• Non-Rotatable

4.625" OD Conflat Flange (CFF) Equivalents:
• CF462, DN75CF, NW75CF, 462CF
Compare to: ISO100x462-CR-VE 462xISO100-CR-VE P103833 5000718 462XLF100-CR ANC-462-ISO-100-OF



ISO100 Series Hardware		4.62" OD Conflat Series Hardware



Custom Adapters and Nipples		ISO x Conflat Adapters
