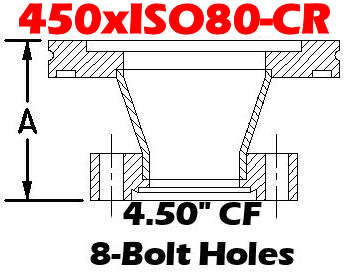

4.50" OD CF to ISO80 <br> Conical Reducer <br> (450xISO80-CR)

450xISO80-CR
ISO80 to 4.50" OD Conflat Flange
Flange to Flange
Conflat to ISO High Vacuum Adapter
Conical Reducing Nipple
• A: 4.25"
• 304 Stainless

ISO80 (ISO-K) Series
• High Vacuum Flange OD: Ø4.33"
• Tube OD: 3.00"
• ISO-K Claw Clamp Style

ISO80 High Vacuum Flange Equivalents:
ISO-80, LF80, NW80, NW-80, Large Flange, ISO-LF

4-1/2" OD Conflat Flange (CF):
• 2.50" Tube OD
• 8-Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter
• Non-Rotatable

4.50" OD Conflat Flange (CFF) Equivalents
• 450CF, DN63CF, NW63CF, CF63, CF64 CF450
Compare to: ISO80x450-CR-VE 450xISO80-CR-VE P104108 5000715 450XLF80-CR ANC-450-ISO-80-OF



ISO80 Series Hardware		4.50" OD Conflat Series Hardware



Custom Adapters and Nipples		ISO x Conflat Adapters
