3.38" CF to 2.75" CF <br> Straight Reducing Nipple <br> 338x275-RN

338x275-RN

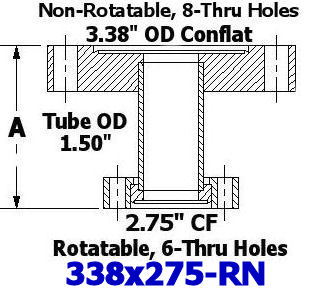

3.38" Conflat to 2.75" Conflat Straight Reducer
• 338x275 CFF (DN50CFxDN40CF)
• 1.50" Tube OD
• 304 Stainless
• OD Polish
• Flange to Flange UHV Vacuum Adapter
• CFxCF Straight Reducing Nipple

2-3/4" OD CF Conflat Flange (CF):
• Rotatable
• 6 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter

2.75" OD CF Conflat Flange (CFF) Equivalents
275CF, CF35, CF38, CF40, CF275
DN35CF, DN40CF, NW35CF

3.38" OD Conflat Flange (CF):
• Non-Rotatable
• 8 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

3-3/8" OD Conflat Flange (CF) Equivalents:
• 338CF, CF338, DN50CF, NW50CF, 3.375" CFF
338x275-RN Compare to: 5000925 F338-150-1R 402012 DN50CFxDN35CF 275x338-RN
