3.38" CF to 2.75" CF <br> Straight Reducing Nipple <br> 338x275-RN-VE

338x275-RN-VE

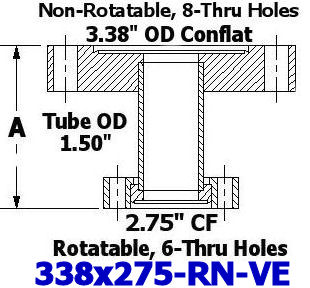

3.38" Conflat to 2.75" Conflat Straight Reducer
Vacuum Essential
• 338x275 CFF (DN50CFxDN40CF)
• 1.50" Tube OD
• 304 Stainless
• OD Polish
• Flange to Flange UHV Vacuum Adapter
• CFxCF Straight Reducing Nipple

2-3/4" OD CF Conflat Flange (CF):
• Rotatable
• 6 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter

2.75" OD CF Conflat Flange (CFF) Equivalents
275CF, CF35, CF38, CF40, CF275
DN35CF, DN40CF, NW35CF

3.38" OD Conflat Flange (CF):
• Non-Rotatable
• 8 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

3-3/8" OD Conflat Flange (CF) Equivalents:
• 338CF, CF338, DN50CF, NW50CF, 3.375" CFF
338x275-VE 275x338-VE



2.75" OD Conflat Series Hardware		3.38" OD Conflat Series Hardware



CF to CF Straight Reducers		CF to CF Conical Reducers



CF to CF Zero Length Reducers		Custom Adapters and Nipples

***This Vacuum Essential Includes***
• Flange to Flange Adapter
• 1-Bolt Kit (275-BK Series)
• 10-Copper Gaskets (275-CG Series)

• 1-Bolt Kit (338-BK Series)
• 10-Copper Gaskets (338-CG Series)
