3.38" OD CF to 2.75" OD Conflat <br> Reducing Cross <br> 338x275-RDX

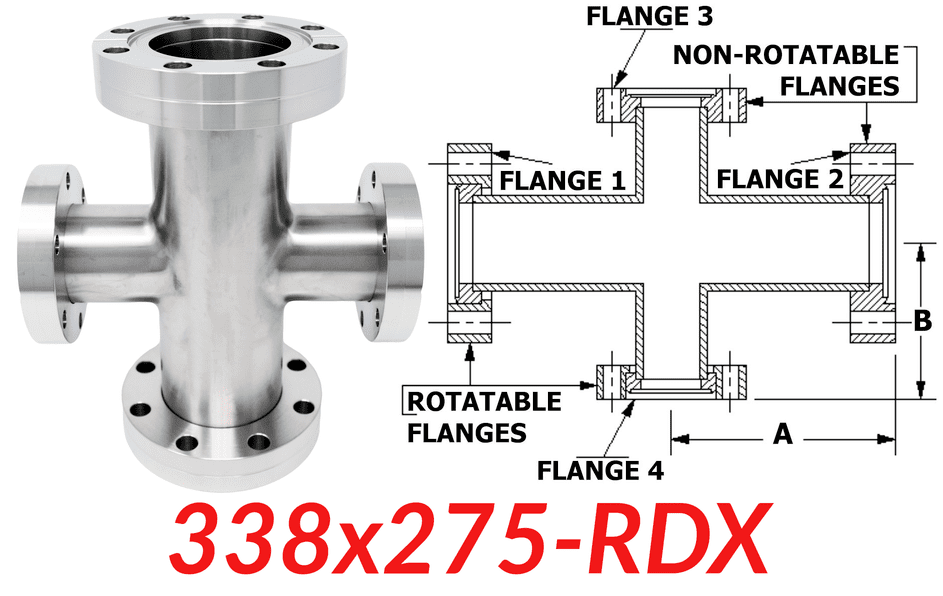

Reducing Cross
3.38" Conflat to 2.75" Conflat
A: 3.22"
B: 2.71"

338x275-RDX
Conflat Flange 4-Way Reducer Cross
3.38" OD Conflat to 2.75" OD Conflat
• DN35CF, DN40CF to DN50CF UHV Adapter
• 304 Stainless
• OD Polish

2-3/4" OD CF Conflat Flange:
• 1.50" Tube OD
• 6 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter

2.75" OD CF Conflat Flange (CFF) Equivalents
275CF, CF35, CF38, CF40, CF275
DN35CF, DN40CF, NW35CF

3.38" OD Conflat Flange (CF):
• 2.00" Tube OD
• 8 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

3-3/8" OD Conflat Flange (CF) Equivalents:
• 338CF, CF338, DN50CF, NW50CF, 3.375" CFF

CF Conflat to CF Conflat Flange
4 Way Adaptive Cross
338x275-RDX Compare to: 4CR-200-150 C-0337-275 5000536 P104802 200-4-150 405040 275x338-X 275x338-RDX 338x275-X



2.75" OD Conflat Series Hardware		3.38" OD Conflat Series Hardware



CF Reducing Crosses		All Conflat Crosses
