3.38" OD Conflat Manual Inline Valve 2.00" Tube OD Copper Bonnet

MIVC-CF338
3-3/8" OD Conflat Inline Vacuum Valve
Manual Bellows Sealed SS Inline Valve
• High & Ultra High (UHV) Vacuum Valve
• Offset In-Line Poppet Valve
• Copper Bonnet
• Bakeable to 150°C (200°C intermittently)

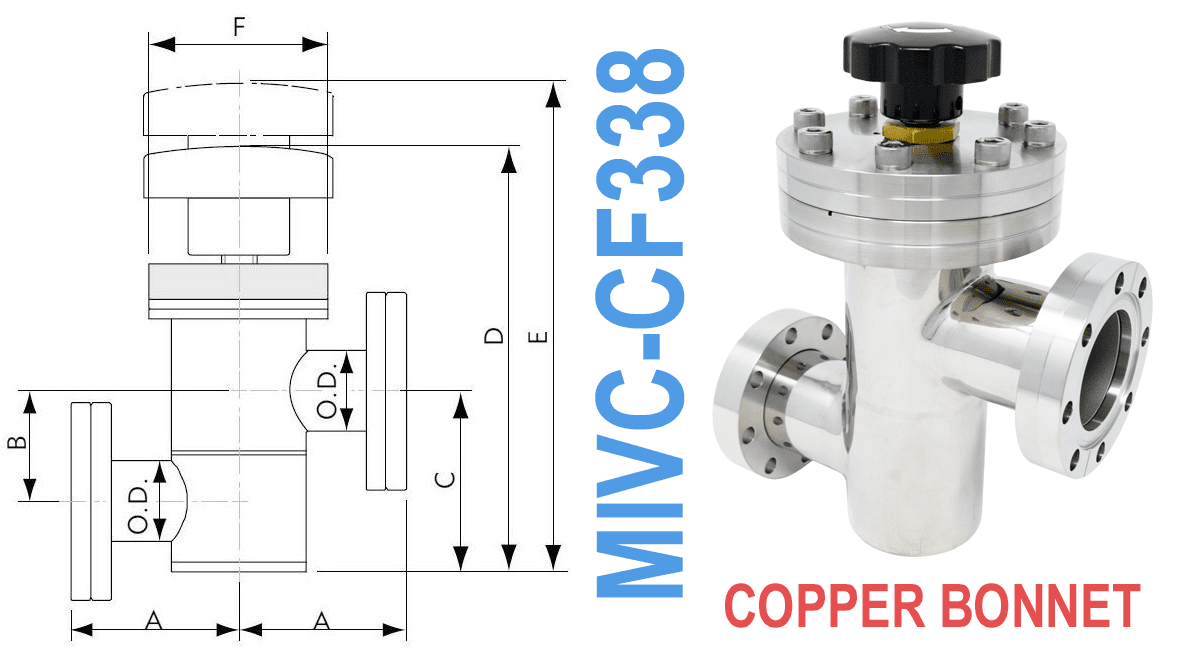

• A: 3.47"
• B: 2.62"
• C: 4.12"
• D: 8.86"
• E: 10.63"
• F: 4.47"
Former PN: MIVC-2002-CF

3.38" OD Conflat Flange (CF):
• Rotatable Flanges
• 2.00" Tube OD
• 8 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

3-3/8" OD Conflat Flange (CF) Equivalents:
• 338CF, CF338, DN50CF, NW50CF, 3.375" CFF
Compare to: SL0200MCCF IV-200M 322022 CILV-2002-CF MIVC-CF338-VE


3.38" OD Conflat Manual Inline Valve
(MIVC-CF338)
MIVC-CF338Price: $1,876.05Sale: $659.00
