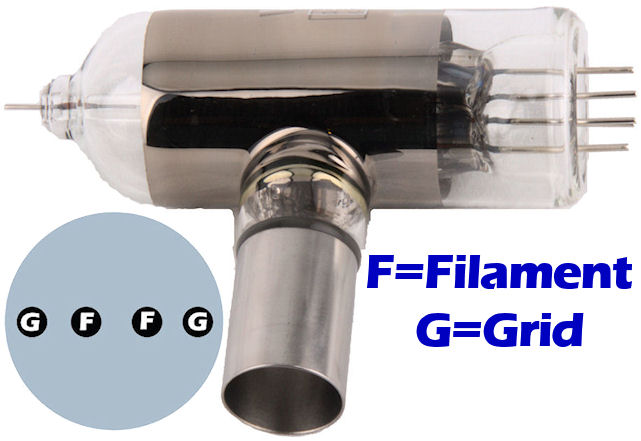

Ion Gauge Tube, 0.75" Platinum Coated, Standard Range

GK-IR-075-PC
Replacement Ion (Hot Filament) Gauge Tube
Glass Bayard-Alpert Type Ionization Vacuum Gauge
Hot Cathode Ion Gauge Tube
Standard Range
3/4" Tubulation Arm
• Iridium Filament (Single)
• Platinum Coating
• Kovar Glass with metal tube

Former LDS PN:1050-1008-PC-SR
Varian Agilent Equivalent: K2466305 (0563-K2466305)

563 Series equivalent ionization gauge tube with thoria-coated iridium filament, 0.75 inch Kovar tube

Equivalents: 0563-K2466-305, G075K-PT, I-075-KC


0.75" Platinum Coated
Ion Gauge Tube
GK-IR-075-PC
GK-IR-075-PCPrice: $514.12Sale: $442.00

Click to enlargeView All Ion Gauge Tubes

Single Filament Ion Gauge Calibration

Quick Disconnects For Connection To Your Gauge Stand Without Permanently Changing The Port Size

NW16 To 3/4" Quick Disconnect
NW25 To 3/4" Quick Disconnect
NW40 To 3/4" Quick Disconnect
NW50 To 3/4" Quick Disconnect
2.75" OD Conflat Flange To 3/4" Quick Disconnect
No Flange To 3/4" Quick Disconnect

Quick Disconnects Use Viton O-Rings For Sealing and are NOT Recommended for
Operating at a pressure below 10-8

STANDARD RANGE ION GAUGES:
• Operating Pressure: 2x10-10 torr to 1x10-3 torr
• X-ray Limit: 2x10-10 torr
• Sensitivity: 10 torr-1

PLATINUM COATING
Shields the gauge elements from electrostatic charges at low pressures and drains off the static charges that can build up at high pressures.

Kovar metal tubulation with a graded seal stronger tubulation.
