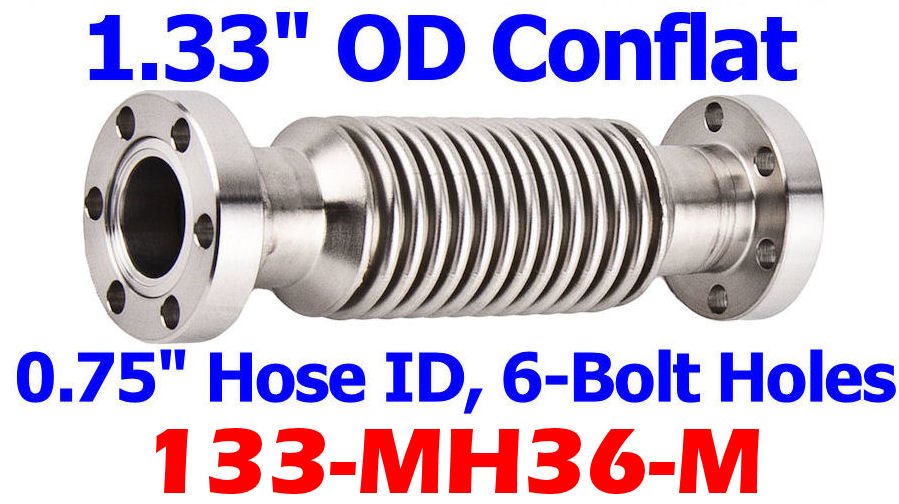

Click to enlarge1.33" OD Conflat Flexible Metal Hose 36" OAL 0.008" Wall (Medium)



133-MH36-M
1.33" OD Conflat Flexible Metal Hose (Bellows)
36" OAL
• Medium Wall: 0.008"
• 304 Stainless Steel
• Flexible Coupling (Nipple)
• Hydraulically (Hydro) Formed Stainless Hose
• Ultra High Vacuum (UHV) Series

1.33" OD CF Conflat Flange
• 0.75" Nominal Hose ID
• 1 Rotatable Conflat Flange
• 6 Clearance (Thru) Holes
• 0.172" Bolt Hole Diameter

1.33" OD CF Conflat Flange Equivalents
• CF133, DN16CF, NW16CF, CF16, 133CF,
1-1/3" Mini Conflat, CFF

Image Shown For Reference Only
133-MH36-M Compare to: 133-MH36M 133-MH36T 133-MH36 133x133-R-MH36-T 133-MH36M MH-CF-A36 CF133XCF133R-075-MH-36.0


1.33" Flexible Metal Hose 36" OAL
(133-MH36-M)
133-MH36-MPrice: $215.00Sale: $198.00

Click to enlarge
Click to enlarge
1.33" OD Conflat Flexhose, Additonal Sizes


1.33" OD Conflat Series Hardware



**1.33" OD Conflat Flange Accessories Below**
1.33" OD Conflat - Bolt Kits
1.33" OD Conflat - Copper Gaskets
1.33" OD Conflat - Viton Gaskets
1.33" OD Conflat - Plastic Caps
