2.75" OD Conflat <br> 0.75" OD Tube <br> (275-075-R)

275-075-R
2.75" OD CF Conflat Flange
Rotatable, Thru Holes
3/4" Bore Size

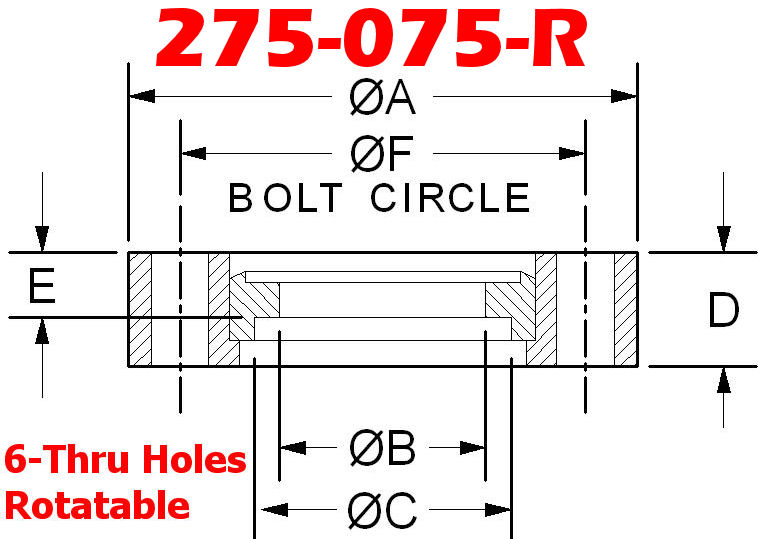

• A: 2.72"
• B: 0.625"
• C: 0.76"
• D: 0.50"
• E: 0.209"
• F: 2.31"

2.75" OD CF Conflat Flange
3/4" Bored Blank
• DN40CF (DN35CF) Bored Blank
• 6 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter
• Rotatable Flange
• 304 Stainless Steel

2-3/4" OD CFF Conflat Flange, Same As:
275CF, CF35, CF38, CF40, CF275
DN35CF, DN40CF, NW35CF

High Vacuum and Ultra High Vacuum (UHV) Flanges
275-075-R Compare to: F0275X075R 275-075R 5000075 100883017 P104705 100011 F275075R
