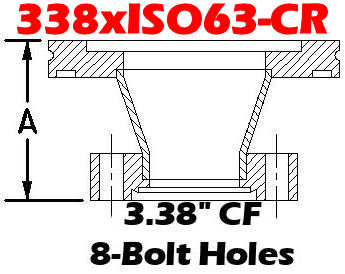

3.38" OD CF to ISO63 <br> Conical Reducer <br> (338xISO63-CR)

338xISO63-CR
ISO63 to 3.38" OD Conflat Flange
Flange to Flange
Conflat to ISO High Vacuum Adapter
Conical Reducing Nipple
• A: 2.85"
• 304 Stainless

ISO63 (ISO-K) Series
• High Vacuum Flange OD: Ø3.74"
• Tube OD: 2.50"
• ISO-K Claw Clamp Style

ISO63 High Vacuum Flange Equivalents:
ISO-63, LF63, NW63, NW-63, Large Flange, MF

3.38" OD Conflat Flange (CF):
• 2.00" Tube OD
• 8 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter
• Non-Rotatable

3-3/8" OD Conflat Flange (CF) Equivalents:
• 338CF, CF338, DN50CF, NW50CF, 3.375" CFF
Compare to: ISO63x338-CR-VE P104051 5000712 338XLF63-CR ANC-338-ISO-63-OF 338xISO63-CR-VE



ISO63 Series Hardware		3.38" OD Conflat Series Hardware



Custom Adapters and Nipples		ISO x Conflat Adapters
