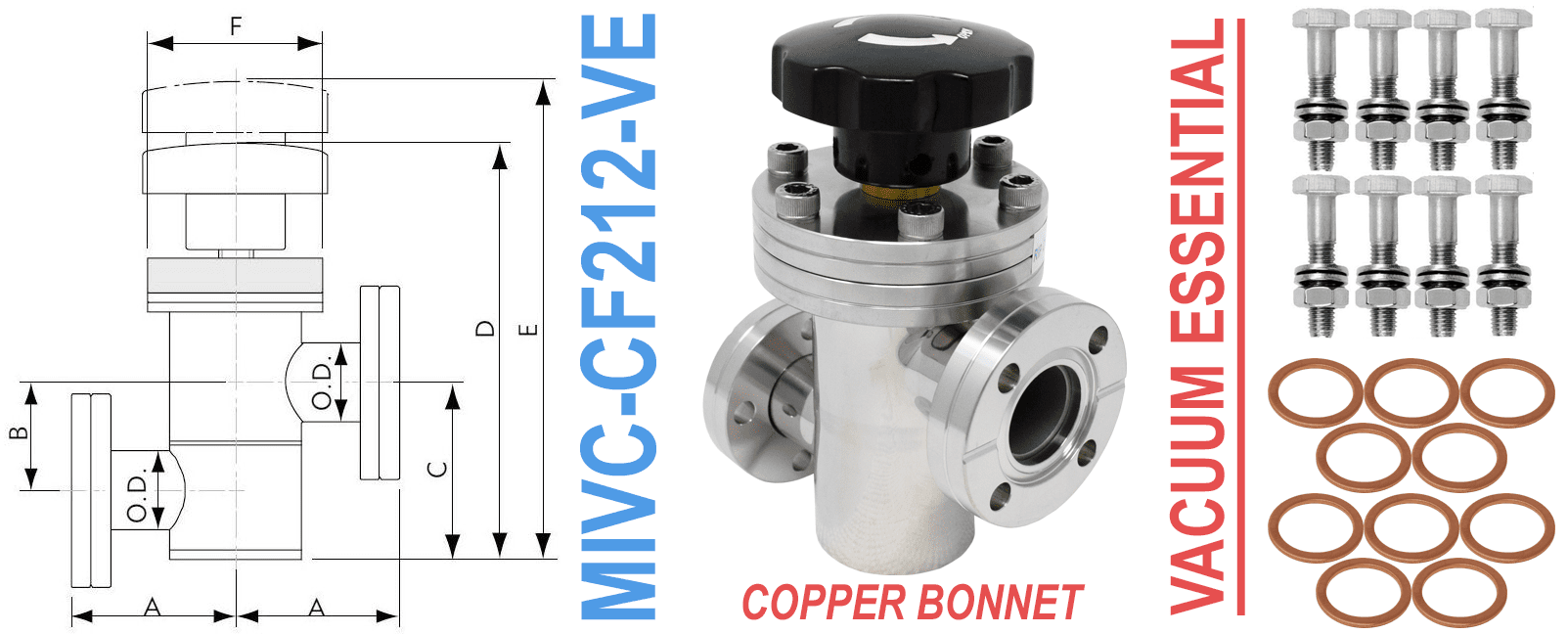

2.12" OD Conflat Manual Inline Valve 1.00" Tube OD Copper Bonnet Vacuum Essential

MIVC-CF212-VE
2-1/8" OD Conflat Inline Vacuum Valve
Manual Bellows Sealed SS Inline Valve
• High & Ultra High (UHV) Vacuum Valve
• Offset In-Line Poppet Valve
• Copper Bonnet
• Bakeable to 150°C (200°C intermittently)
• A: 2.05"
• B: 1.37"
• C: 2.25"
• D: 5.33"
• E: 6.11"
• F: 2.75"
Vacuum Essential

2.125" OD Conflat Flange (CF):
• Rotatable Flanges
• 1.00" Tube OD
• 4 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter

2.125" OD Conflat Flange (CF) Equivalents:
• CF212, DN25CF, NW25CF, 212CF, 2-1/8" CF


2.12" OD Conflat Manual Inline Valve
(MIVC-CF212-VE)
MIVC-CF212-VE$510.00

Click to enlarge
Click to enlarge
2.12" OD Conflat Series Hardware


Conflat Valves (All)



**This Vacuum Essential Includes**
Manual Inline Valve, 2.12" Conflat: MIVC-CF212
• 2-Bolt Kits (212-BK Series)
• 10-Copper Gaskets (212-CG Series)
