2.75" OD Conflat To NW16 <br> Reducing Cross <br> (275xNW16-RWX)

Reducing Cross
2.75" OD Conflat To NW16

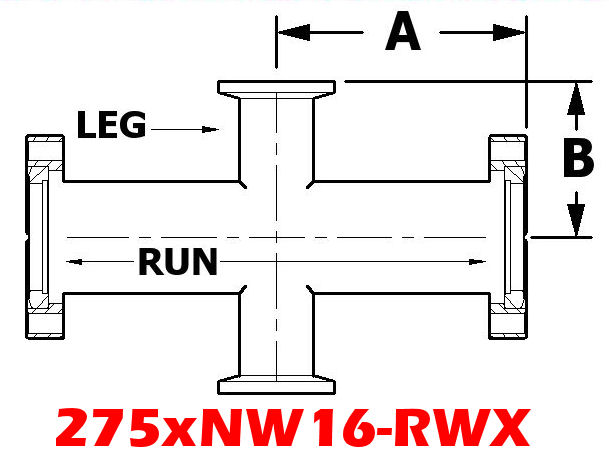

A: 2.46"
B: 1.55"

275xNW16-RWX
2.75" OD Conflat to NW16 Reducer Cross

Flange 1&2: (Run)
2-3/4" OD CF Conflat Flange
• 1.50" Tube OD
• 6 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter
• Rotatable Conflat Flanges

2.75" OD CF Conflat Flange (CFF) Equivalents
275CF, CF35, CF38, CF40, CF275
DN35CF, DN40CF, NW35CF

Flange 3&4 (Leg):
NW16 (KF16) Vacuum Flange
• NW16 Tube OD: 0.75"
• NW16 Centering Ring Counter Bore: 0.68"

NW16 High Vacuum Flange Equivalents
KF16, KF-16, K075, NW-16, QF16, ISO-QF
4-Way Reducing Adapter Cross
NW16x275-X NW16x275-RWX 275xNW16-X



2.75" OD Conflat Series Hardware		All NW16 Hardware



All Conflat Crosses		All NW Crosses



4-Way Reducer Cross Weld Bodies (All)		Non-Reducing Series
