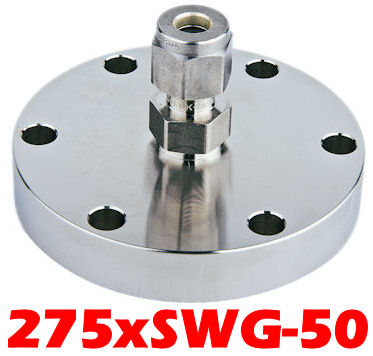

Click to enlarge2.75" OD Conflat To 1/2" Swagelok® Tube OD: 0.50 A: 2.75"

275xSWG-50
2-3/4" OD Conflat Flange to 0.50" Swagelok Adapter
High and Ultra High Vacuum (UHV) Fitting

2.75" OD CF Conflat Flange
• Non-Rotatable
• 6 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter
• 304 Stainless
• Image Shown For Reference Only

2.75" OD CF Conflat Flange (CFF) Equivalents
275CF, CF35, CF38, CF40, CF275
DN35CF, DN40CF, NW35CF
275xSWG-50 275x50-SWG 275x50SWG 275x50SWG P102255 5000624 CF275XSWG50-2.18


2.75" OD Conflat Flange to 1/2" Swagelok
(275xSWG-50)
275xSWG-50Price: $191.23Sale: $108.00

Click to enlarge
Click to enlarge
2.75" OD Conflat Series Hardware


2.75" OD Swagelok Adapters



**2.75" OD Conflat Flange Accessories Below**
2.75" OD Conflat - Bolt Kits
2.75" OD Conflat - Copper Gaskets
2.75" OD Conflat - Viton Gaskets
2.75" OD Conflat - Plastic Caps
