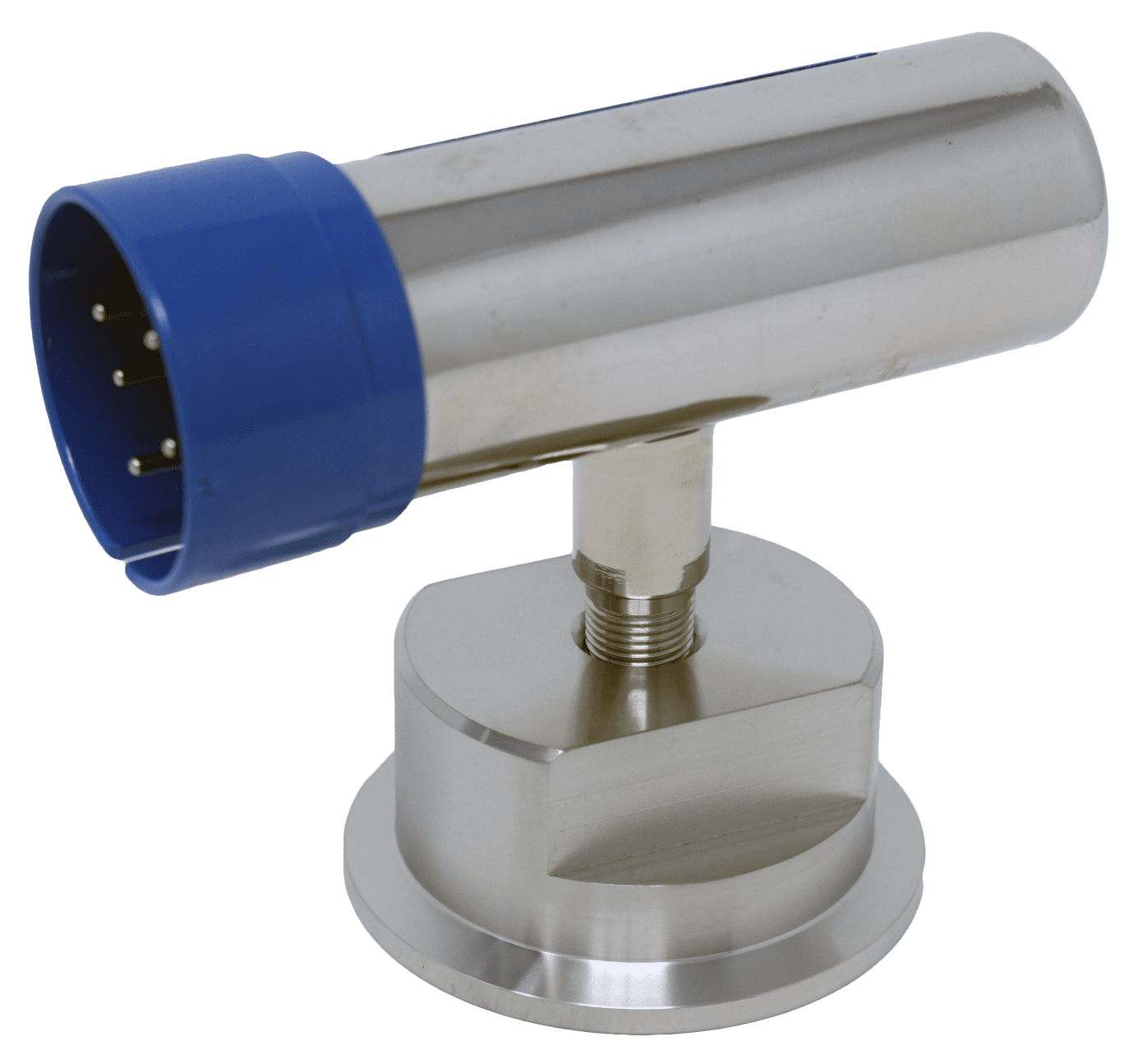

275 Convectron Gauge Tube - NW40 Port <br> (LDS-275316)

LDS-275316
NW40 Threaded Port (KF40, QF40)
275316 Series Convectron Granville Equivalent
• Threaded Port, Not Welded
• Bakeable to 150°C (non-operating)
• Contains temperature compensated heat loss sensor
• Drop-in Replacement Convectron Vacuum Gauge Tube
• 100% Leak Tested Prior To Shipment

NW40 (KF40) Mounted On Genuine 275071 Granville (MKS) Convectron Vacuum Gauge Tube

NW40 (KF40) Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF

The 275 Series Convection-enhanced Pirani Vacuum Gauge provides reliable measurement from 10-4 Torr to atmosphere using a gold plated tungsten sensor. Convectron® gauges used in thousands of vacuum processes to accurately measure pressure from atmosphere to 10-4 Torr.
P102580 KJL275316 Granville Phillips MKS Instruments

All NW40 Hardware
