2.75" OD Conflat <br> 0.75" OD Tube <br> (275-075-R-T)

275-075-R-T
2.75" OD CF Conflat Flange
Rotatable, Tapped Holes
3/4" Bore Size

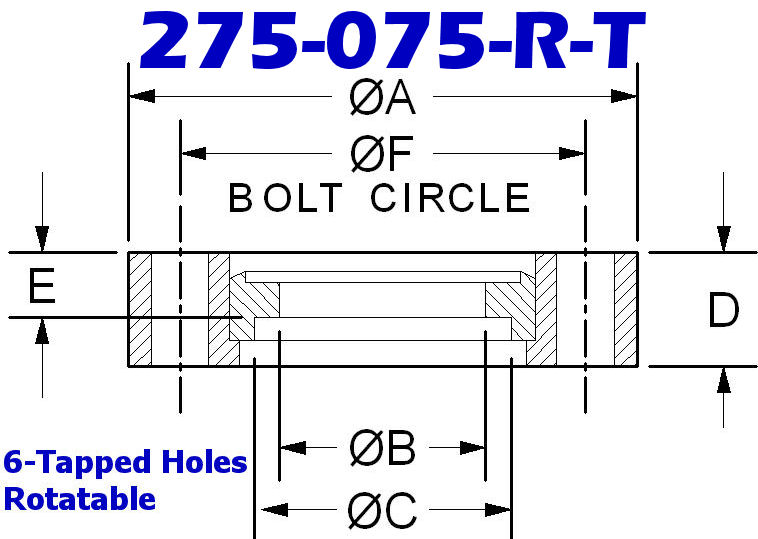

• A: 2.72"
• B: 0.625"
• C: 0.76"
• D: 0.50"
• E: 0.209"
• F: 2.312"

2.75" OD CF Conflat Flange
• 6 Tapped Holes (1/4-28 Thread)
• 3/4" Bored Blank
• DN40CF (DN35CF) Bored Blank
• Rotatable
• 304 Stainless Steel

2-3/4" OD CF Conflat Flange, Same As:
275CF, CF35, CF38, CF40, CF275
DN35CF, DN40CF, NW35CF

High Vacuum and Ultra High Vacuum (UHV) Flanges
275-075-R-T Compare to: 275-075-RT F0275X075RT 100883024 275-075RT 5000083 P104674 120011 F275075RT
