2.75" OD Conflat to NW16 <br> Conical Reducer <br> (275xNW16-CR)

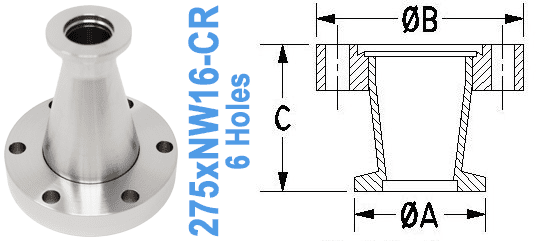

NW16 To 2.75" Conflat Conical Reducer
A: 1.18"
B: 2.75"
C: 2.73"

275xNW16-CR
NW16 (KF16) to 2.75" OD Conflat Flange (CF)
• Conical Reducing Nipple
• Flange to Flange Conical Reducer
• High Vacuum Adapter
• OD Polish

NW16 Flange OD: Ø1.18"
• NW16x275-CR, NW16xDN35CF, NW16xDN40CF
• NW16 Tube OD: 3/4"
• NW16 Centering Ring Counter Bore: 0.68"

NW16 High Vacuum Flange Equivalents
KF16, KF-16, K075, NW-16, QF16, ISO-QF

2-3/4" OD CF Conflat Flange (CF):
• DN35CFxNW16, DN40CFxNW16, DN40CFxKF16
• Non-Rotatable
• 1.5" Tube OD
• 6 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter

2.75" OD CF Conflat Flange (CFF) Equivalents
275CF, CF35, CF38, CF40, CF275
DN35CF, DN40CF, NW35CF Del Seal
275xNW16-CR Compare to: P103815 275XQF16-CR 5000694 ANC-NW-16-275 CF275XQF16-150X075-CR-2.73 275xNW16-CR-VE NW16x275-CR-VE



2.75" OD Conflat Series Hardware		All NW16 Hardware



NW to Conflat Adapters (ALL)		Make Your Own!

***NW16 Flange Accessories Available Below***
NW16 Centering Rings
NW16 Clamps, All Types
NW16 Plastic Caps

2-3/4" OD CF Conflat Flange
• 6 Clearance (Thru) Bolt Holes
• 0.265" Bolt Hole Diameter

**2.75" OD Conflat Flange Accessories Below**
2.75" OD Conflat - Bolt Kits
2.75" OD Conflat - Copper Gaskets
2.75" OD Conflat - Viton Gaskets
2.75" OD Conflat - Plastic Caps
