2.12" OD Conflat Port Manual Angle Inline Valve

MAIV-CF212
2-1/8" OD Conflat Angle-Inline Vacuum Valve
Manual Bellows Sealed SS Inline Valve
• High Vacuum Valve
• Angle In-Line Poppet Valve
• Viton (FKM) Seals

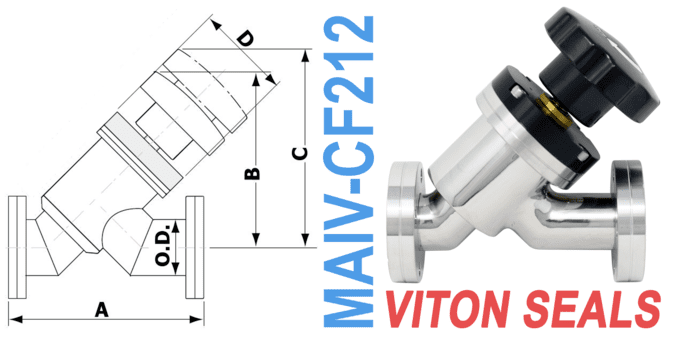

• A: 4.24"
• B: 3.89"
• C: 4.43"
• D: 2.24"
Former PN: MAIV-1002-CF

2.125" OD Conflat Flange (CF):
• Rotatable Flanges
• 1" Tube OD
• 4 Clearance (Thru) Holes
• 0.265" Bolt Hole Diameter

2.125" OD Conflat Flange (CFF) Equivalents:
CF212, DN25CF, NW25CF, 212CF, 2-1/8" Del Seal
MAIV-CF212 Compare to: 3106506 LPAIV100-CF-E-M AIV-1002-CF P108864 320311 IV-G2100 151-0025C MAIV-CF212-VE


2.12" OD Conflat
Manual Angle Inline Valve
(MAIV-CF212)
MAIV-CF212Price: $728.35Sale: $453.00

Click to enlarge
Click to enlarge
2.12" OD Conflat Series Hardware


Conflat Valves (All)



**2.12" OD Conflat Flange Accessories Below**
2.12" OD Conflat - Bolt Kits
2.12" OD Conflat - Copper Gaskets
2.12" OD Conflat - Viton Gaskets
2.12" OD Conflat – Plastic Caps
