Click to enlargeNW50 to NW25 Flexible Metal Hose 20" Overall Length Hose ID: 1.00" Vacuum Essential

NW50x25-MH20-VE
NW50 to NW25 Reducing Flexible Metal Hose; 20" OAL
Vacuum Essential
• Nominal Hose ID: 1"
• Flange to Flange Bellows Adapter
• 304 Stainless Vacuum Hose
• Hydraulically Formed (Hydro) High Vacuum Bellows
• Flexible Reducer Coupling (Nipple)
• Thin Wall: 0.006"

NW25 (KF25) Flange OD: Ø1.57"
• Nominal Hose ID: 1.00"
• NW25 Centering Ring Counter Bore: 1.03"

NW25 High Vacuum Flange Equivalents
KF25, KF-25, K100, NW-25, QF25, ISO-QF

NW50 (KF50):
• Flange OD: Ø2.95"

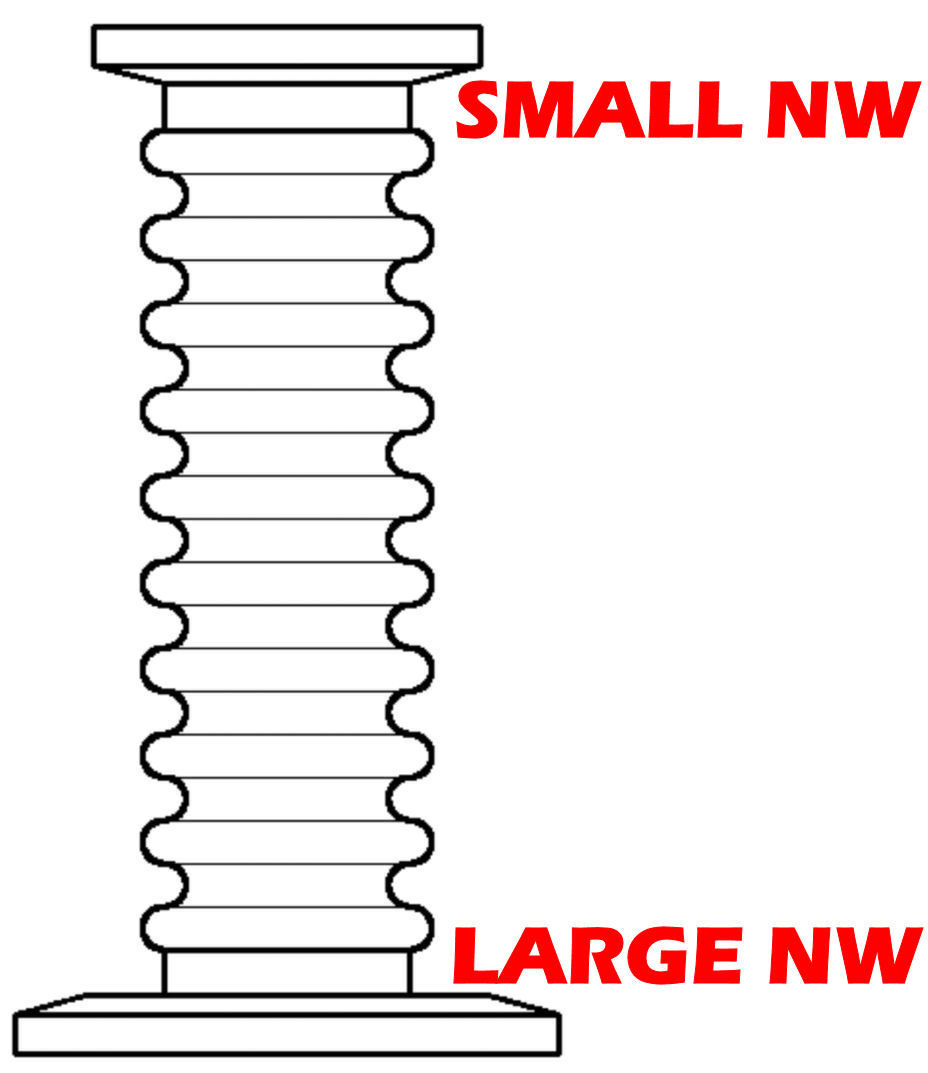

Image Shown For Reference Only
NW50xNW25-MH20-VE NW25x50-MH20-VE NW25xNW50-MH20-VE KF50xKF25 KF25xKF50


20" Reducing Flex Hose
NW50 & NW25 Flanges
(NW50x25-MH20-VE)
NW50x25-MH20-VE$224.00

Click to enlarge
Click to enlarge
All NW25 Hardware


All NW50 Hardware


Click to enlarge
Reducing Flex Hose



**This Vacuum Essential Includes**
NW50x25-MH20

Aluminum Wing Clamps, 1 Each
(NW25-100-CW)
(NW50-200-CW)

Stainless/Viton Centering Rings, 1 Each
(NW25-100-SR-V)
(NW50-200-SR-V)
