212-100-T
2.12" OD CF Conflat Flange
1" Bore Size

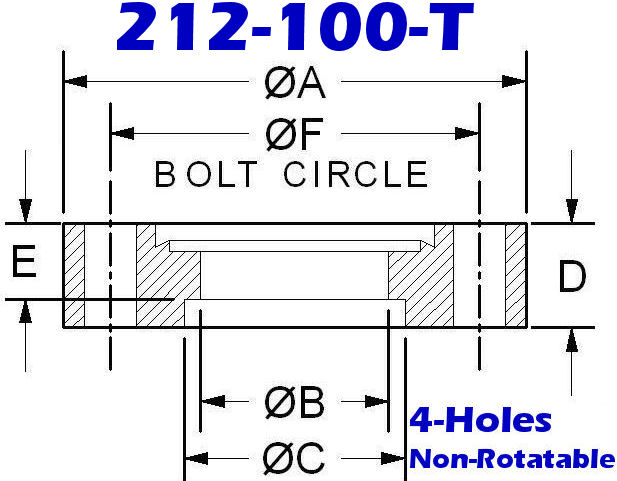

• A: 2.12"
• B: 0.94"
• C: 1.01"
• D: 0.47"
• E: 0.170"
• F: 1.625"
2.12" OD Conflat Flange (DN25CF):
• 1" Tube OD
• 4 Tapped Holes (1/4-28 Thread)
• Non-Rotatable
• 304 Stainless
2.125" OD Conflat Flange (CFF) Equivalents:
• CF212, DN25CF, NW25CF, 212CF, 2-1/8" CF
High Vacuum and Ultra High Vacuum (UHV) Flanges
212-100-T Compare to: F0212X100NT F218100T 130007 P104555 212-100NT 100882009 5000045 2.125 inch
