1.33" OD Conflat Manual Inline Valve 0.75" Tube OD Copper Bonnet

MIVC-CF133
1.33" OD Conflat Inline Vacuum Valve
Manual Bellows Sealed SS Inline Valve
• High & Ultra High (UHV) Vacuum Valve
• Offset In-Line Poppet Valve
• Copper Bonnet
• Bakeable to 150°C (200°C intermittently)

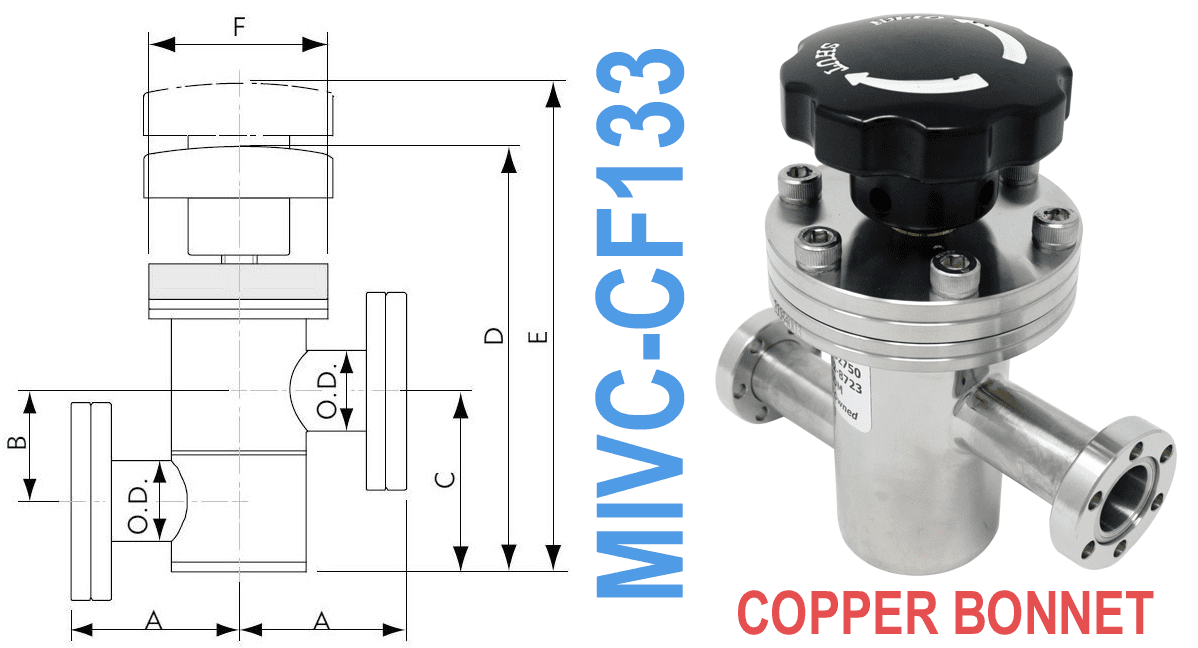

• A: 2.50"
• B: 1.12"
• C: 1.87"
• D: 5.09"
• E: 5.85"
• F: 2.75"
Former PN: MIVC-0752-CF

1.33" OD CF Conflat Flange
• Rotatable Flanges
• 0.75" Tube OD
• 6 Clearance (Thru) Holes
• 0.172" Bolt Hole Diameter

1.33" OD CF Conflat Flange Equivalents
• CF133, DN16CF, NW16CF, CF16, 133CF,
1-1/3" Mini Conflat, CFF, Del-Seal
Compare to: SL0075MCCF CILV-0752-CF IV-075M 322004 MIVC-CF133-VE Del Seal


1.33" OD Conflat Manual Inline Valve
(MIVC-CF133)
MIVC-CF133Price: $742.35Sale: $468.00
