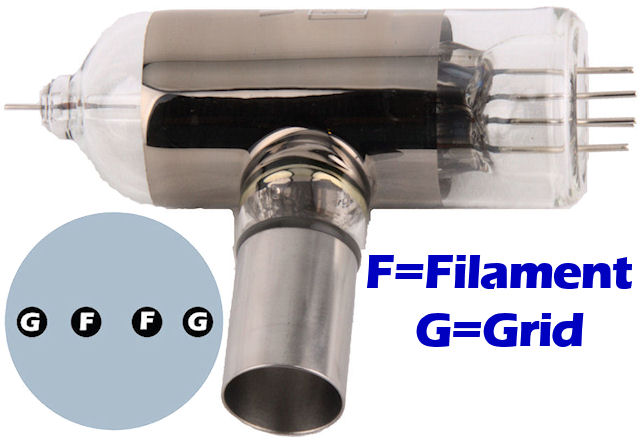

Ion Gauge Tube, 1.00" Platinum Coated, Standard Range

GK-IR-100-PC
Replacement Ion (Hot Filament) Gauge Tube
Glass Bayard-Alpert Type Ionization Vacuum Gauge
Hot Cathode Ion Gauge Tube
1" Tubulation Arm
• Iridium Filament (Single)
• Platinum Coating
• Standard Range
• Kovar Glass with metal tube

Former LDS PN: 1050-1020-PC-SR
Varian Agilent Equivalent: K2466302 (563 Series)
563 equivalent ionization gauge tube with thoria-coated iridium filament, 1 inch Kovar tube

Equivalents: 0563-K2466-302, I-100-KC, G100K-PT


1.00" Platinum Coated
Ion Gauge Tube
GK-IR-100-PC
GK-IR-100-PCPrice: $514.12Sale: $442.00

Click to enlargeView All Ion Gauge Tubes

Single Filament Ion Gauge Calibration

Purchase Quick Disconnects For Connection To Your Gauge Stand Without Permanently Changing The Port

NW25 To 1" Quick Disconnect
NW40 To 1" Quick Disconnect
NW50 To 1" Quick Disconnect
2.75" Conflat Flange To 1" Quick Disconnect
No Flange To 1" Quick Disconnect

Quick Disconnects Use Viton O-Rings For Sealing and are NOT Recommended for Operating at a pressure below 10-8

STANDARD RANGE ION GAUGES:
• Operating Pressure: 2x10-10 torr to 1x10-3 torr
• X-ray Limit: 2x10-10 torr
• Sensitivity: 10 torr-1

PLATINUM COATING
Shields the gauge elements from electrostatic charges at low pressures and drains off the static charges that can build up at high pressures.

Kovar metal tubulation with a graded seal stronger tubulation.
