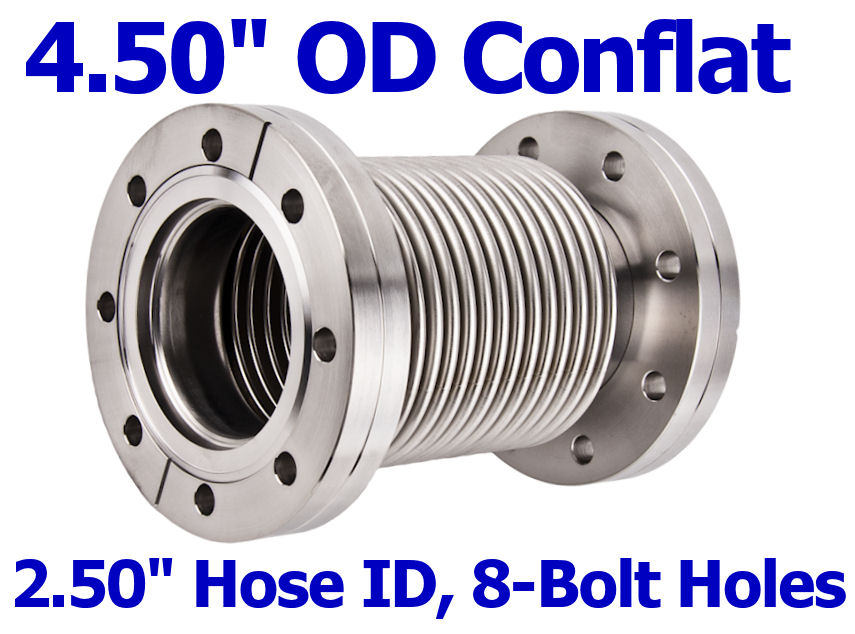

Click to enlarge4.50" OD Conflat Flexible Metal Hose 20" OAL Medium Wall

450-MH20-M
4.50" OD Conflat Flange (CF) Series
20" OAL CF Flexible Metal Hose (Bellows)
• 0.012" Wall Thickness (Medium)
• 1 Rotatable Conflat Flange
• 304 Stainless Steel
• Hydraulically Formed Ultra-High Vacuum (UHV) Bellows
• Special Lengths Available

4-1/2" OD CF Conflat Flange (CF)
• Ø2.50" Hose ID
• 8 Clearance (Thru) Holes
• 0.332" Bolt Hole Diameter

4.50" OD Conflat Flange (CFF) Equivalents
• 450CF, DN63CF, NW63CF, CF63, CF64 CF450
Compare to: 450-MH20M, 450-MH20-T,450-MH20T 450x450-R-MH20-T 450x450-R-MH18-T FH-250-18-2CF 0800243 CF450XCF450R-250-MH-18.0 450-MH20M-VE 450-250-MH20-M-VE 450-MH20-M-VE


4.50" Flexible Metal Hose 20" OAL
(450-MH20-M)
450-MH20-M$410.00

Click to enlarge
Click to enlarge
4.50" OD Conflat Series Hardware


All 4.50" CF Metal Hose
