16.50" OD Conflat <br> 14" OD Tube <br> 1650-1400-T

16.50" OD Conflat Flange
Non-Rotatable
36-Tapped Holes, 3/8-24 Thread
14" Tube OD

1650-1400-T
16-1/2" OD CF Conflat Flange to 14" Tube OD
Non Rotatable, 36-Tapped Holes
14" Tube OD (Bored Blank)
Contact LDS for Pricing

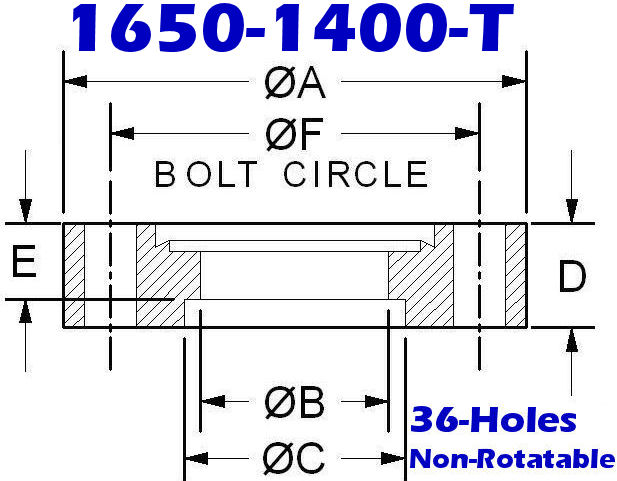

• A: 16.50"
• B: 13.75"
• C: 14.02"
• D: 1.12"
• E: 0.5"
• F: 15.31"
• 19 lbs.

16.50" OD CF Conflat Flange
• 36 Tapped Holes
• 3/-24 Bolt Hole Thread
• Non-Rotatable
• 304 Stainless

16-1/2" OD Conflat, Same As:
CF1650, DN350CF, CF350, 1650CF

High Vacuum and Ultra High Vacuum (UHV) Flange
1650-000 Compare to: F1650X1400NT 5000203
