Click to enlarge13.25" OD Conflat BLANK Non-Rotatable 30-Clearance Holes 41 lbs.

1325-000

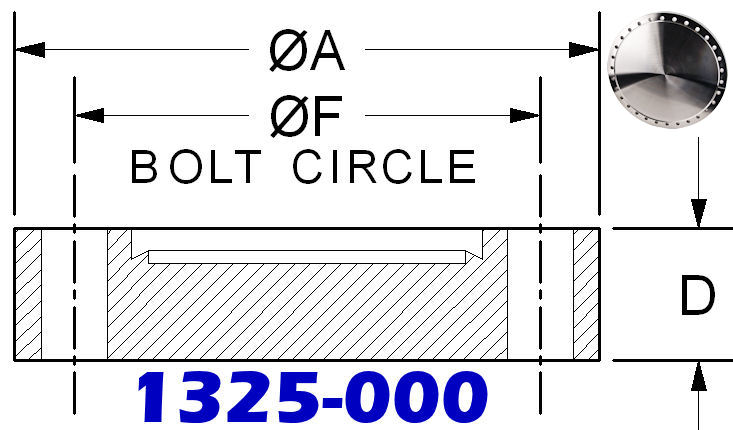

13-1/2" OD Conflat Flange Blank
• A: 13.25"
• D: 1.12"
• F: 12.06"
• 42 lbs.

13.25" OD Conflat Equivalent Names:
• CF1325, DN275, DN275CF, NW275CF, 1325CF
• Non-Rotatable
• 30-Clearance (Thru) Holes
• 0.39" Bolt Hole Diameter
1325-000 Compare to: F1325X000N 110034 F1325000 P102252 5000172


13.25" OD Conflat BLANK
(1325-000)
1325-000Price: $1,118.04Sale: $605.00

Click to enlarge
Click to enlarge
Shop all 13.25" OD Conflat Hardware


Anti-Seize Stick


Click to enlarge
Click to enlarge
13.25" OD Conflat
Non-Rotatable
THRU Hole Series


13.25" OD Conflat
Rotatable
THRU Hole Series


Click to enlarge
Click to enlarge
13.25" OD Conflat
Non-Rotatable
TAPPED Hole Series


13.25" OD Conflat
Rotatable
TAPPED Hole Series



**13.25" OD Conflat Flange Accessories Below**
13.25" OD Copper Gaskets
13.25" OD Conflat Flange Viton Gaskets
13.25" OD Conflat - Clearance Hole (THRU) Bolt Kit
