D16B TriVac Pump <br> 11.3 CFM

LEY-898698-E72127874

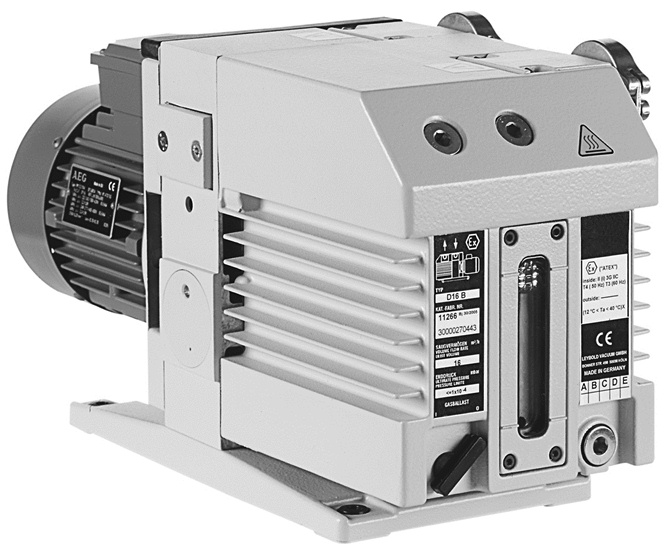

D16B TriVac Mechanical Pump
11.6 CFM - (Actual Pumping Speed)
• Single Phase, 115Volt 50/60Hz
• NW25 (KF25) Inlet Exhaust Flange
• NEW Oerlikon Leybold Vacuum Pump
• Rotary Vane Vacuum Pump
• 78 lbs.

Former Part Number: 91265-1
NEW Part Number: 898698-E72127874
Price Includes Power Cord
Sorry, Free Shipping Is NOT Available On This Item
LEY-91265-1 898698 E72127874

All NW25 Hardware

Ultimate Partial Pressure:
• With Gas Ballast Closed: <1x10^-4 Torr
• With Gas Ballast Open: <4x10^-3

• Water Vapor Tolerance 19 Torr
• Noise level at 3 feet with gas ballast closed 52 dB(A)
• Noise level at 3 feet with gas ballast open 54 dB(A)
• Motor 3/4 hp
• Pump Rotational Speed 1750 RPM
• Minimum Oil Capacity 0.5 qt
• Inlet Exhaust Flange NW25
• Weight 78 lbs.
