Click to enlargeNW50 Flexible Metal Hose 10" OAL Vacuum Essential

NW50-MH10-VE

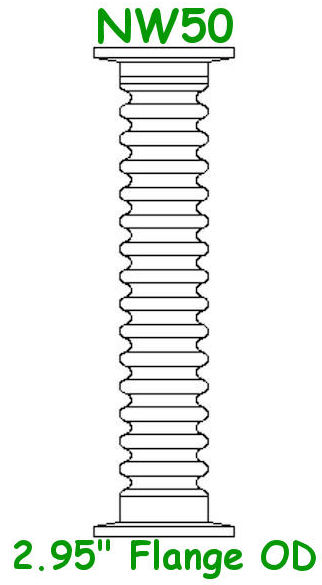

NW50 to 10" Flexible Metal Hose (Bellows)
10" OAL
Vacuum Essential
• NW50 (KF50) Flange OD: Ø2.95"
• Nominal Hose ID: 2"
• 304 Stainless Vacuum Hose
• Hydraulically Formed (Hydro) High Vacuum Bellows
• NW50 Flexible Coupling (Nipple)
• Thin Wall: 0.006"

NW50 High Vacuum Flange Equivalents
KF50, KF-50, K200, NW-50, QF50, ISO-QF

Image Shown For Reference Only
NW50-200-MH10-VE


10" Flexible Metal Hose
(NW50-MH10-VE)
NW50-MH10-VE$164.00

Click to enlarge
Click to enlarge
Thin Wall
Additional Lengths, NW50


Medium/Thick Wall
Additional Lengths, NW50


Click to enlarge
All NW50 Hardware



***This Vacuum Essential Includes***
• NW50 Flexible Metal Hose (Bellows)
2-Aluminum Wing Clamps (NW50-200-CW)
2-Stainless/Viton Centering Rings (NW50-200-SR-V)
