Click to enlargeNW40 Flexible Metal Hose Thin Wall 10" OAL

NW40-150-MH10

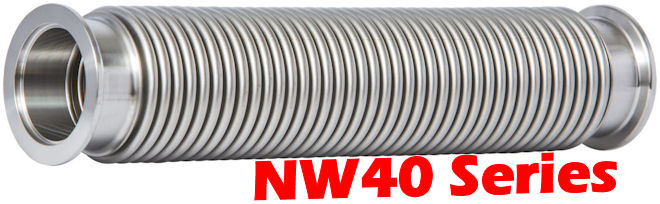

NW40 to 10" Flexible Metal Hose (Bellows)
10" OAL
• NW40 (KF40) Flange OD: Ø2.18"
• NW40 Centering Ring Counter Bore: 1.62"
• Nominal Hose ID: 1.5"
• 304 Stainless Vacuum Hose
• Hydraulically Formed (Hydro) High Vacuum Bellows
• NW40 Flexible Coupling (Nipple)
• Thin Wall: 0.006"

NW40 High Vacuum Flange Equivalents
KF40, KF-40, K150, NW-40, QF40, ISO-QF

Image Shown For Reference Only
NW40-150-MH10-OS Compare to: MHT-QF-C10 100317415 QF40-150-B-10.0 0800020 P103706 P103705 LH-150-10-2NW KL01500984 NW40-150-MH10-VE NW40-MH10-VE


10" Flexible Metal Hose
(NW40-150-MH10)
NW40-150-MH10Price: $283.50Sale: $124.00

Click to enlarge
Click to enlarge
Thin Wall
Additional Lengths, NW40


Medium/Thick Wall
Additional Lengths, NW40


Click to enlarge
All NW40 Hardware



NW40 Flange OD: Ø2.18"
NW40 Hose ID: 1.50"

***NW40 Flange Accessories Available Below***
NW40 Centering Rings
NW40 Clamps, All Types
NW40 Plastic Caps
